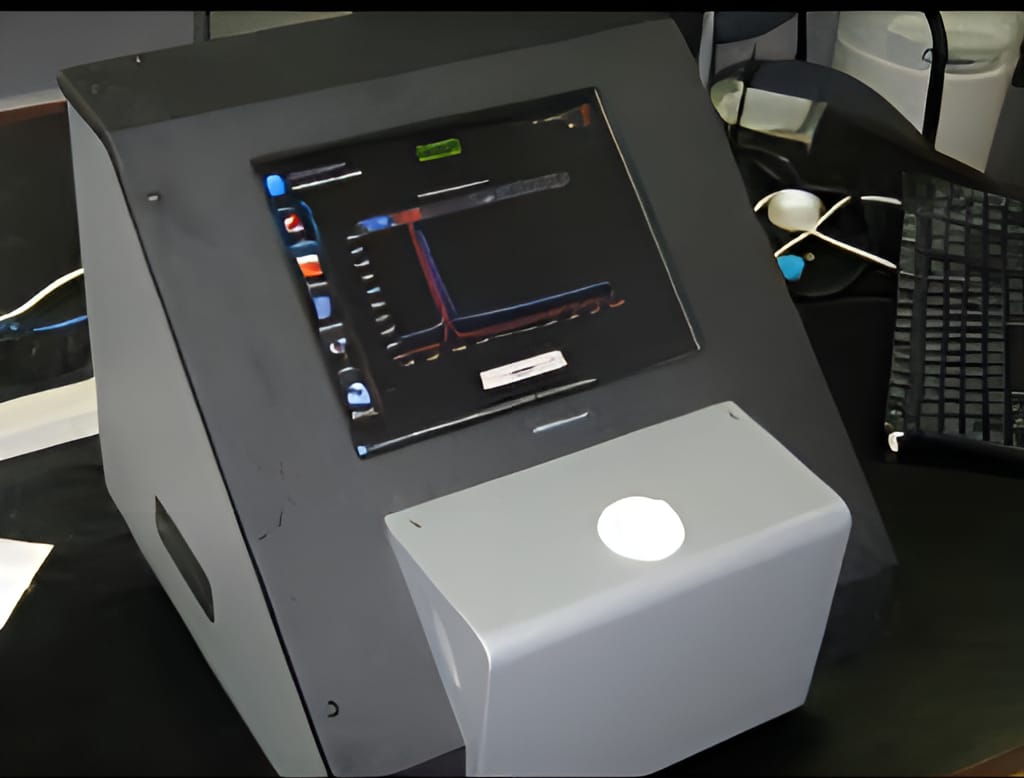

This analyzer consists of gas chromatography with a dual polarity axial ion mobility
spectrometer (AIMS).
This instrument is designed to detect explosives, narcotics, and other threat
substances like: human odors, characteristic compounds of contraband tobacco bulk
shipments and specific bio-markers indicative of pathogens or other biological
threat materials. Food volatiles can be programmed to determine food spoilage or
contraband food items.
After the sample is acquired (use our hand-held or high volume sampling system) the
sample card is introduced into the analyzer for sample vaporization and analysis.

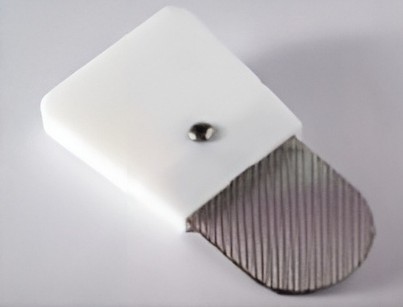

Aspiration sample Card
Sample provider
Each card consists of a fine wire mesh chemically treated to capture vapor samples of
threat substances as well as capturing microscopic airborne particles floating in
the air.
These trapped molecules are vaporized into the analyzer system for quick
identification.
The new Sample Card Processor provides decontamination and readiness for field
deployment when its needed.

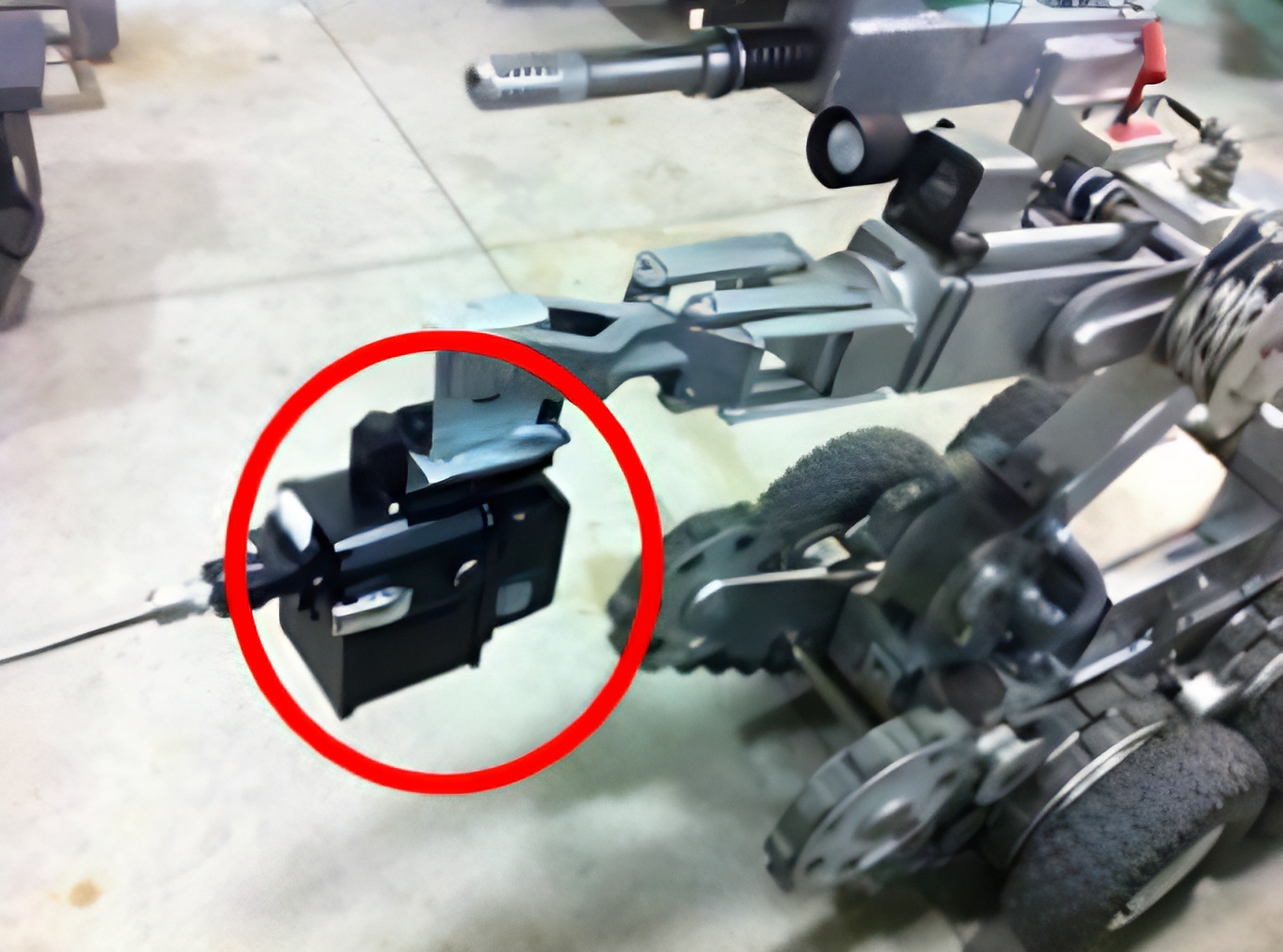

Hand Held sampling system
Identifier
Light and portable sampling system for cars, trucks, trailers or suspicious packages.
Up to 150 litre per minute adjustable suction capacity.
Lithium-ion battery module and charger.
Two hour continuous operation and 45 minutes recharge times.
External on/off connector for remote operation by robot.
Can be powered either by battery or external power connection to a robot.
Needle probe, conical adapters, snorkel and various other attachments.
Air samples taken from an object, vehicle, package, pallet or person is drawn
through TeknoScan sample card.

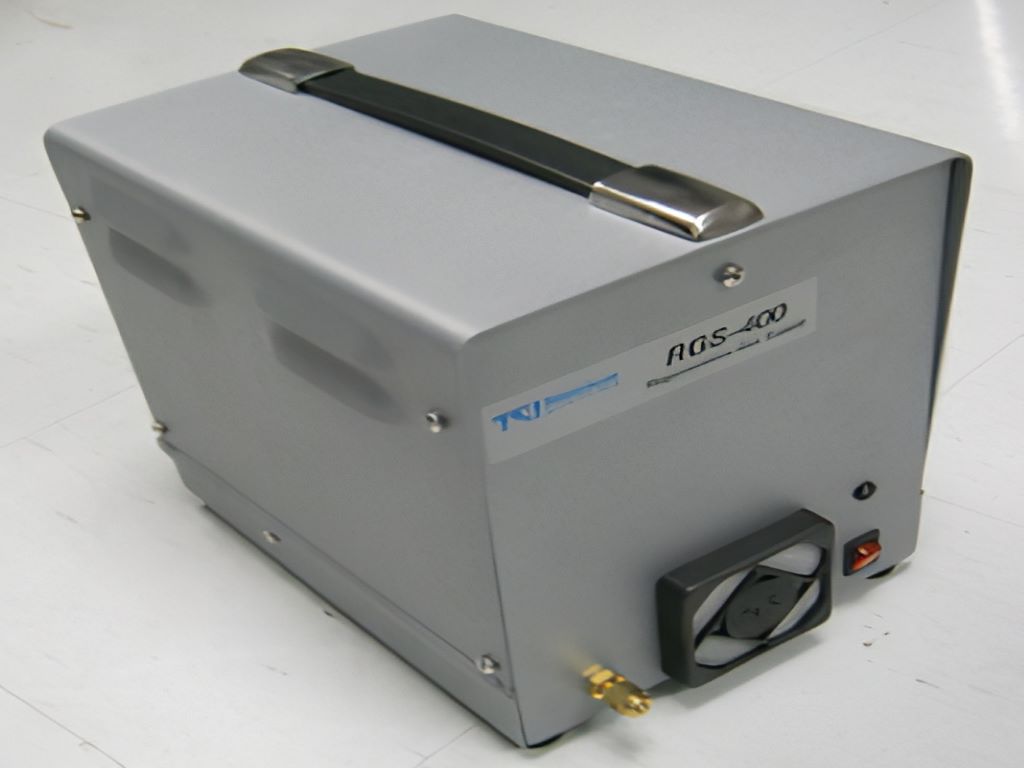

Regenerative Gas Supplier
Supplier
The air produced by the RGS-400 is free of hydrocarbons, has low moisture < 2 ppm and
organic compound content of < 1 ppm, and is suitable for use with ion mobility
based instruments being used in the airports and in other application. The unit
can be interfaced to any analytical system, Gas chromatographic, tritium
monitors and others that require a reliable and dry gas supply on a continuous
basis. Left image shows how the RGS is using inside analyzer. The RGS provides a
highly purify air for use with analytical instrumentation including desktop IMS
detectors. (show as below, connect to 2 instruments)

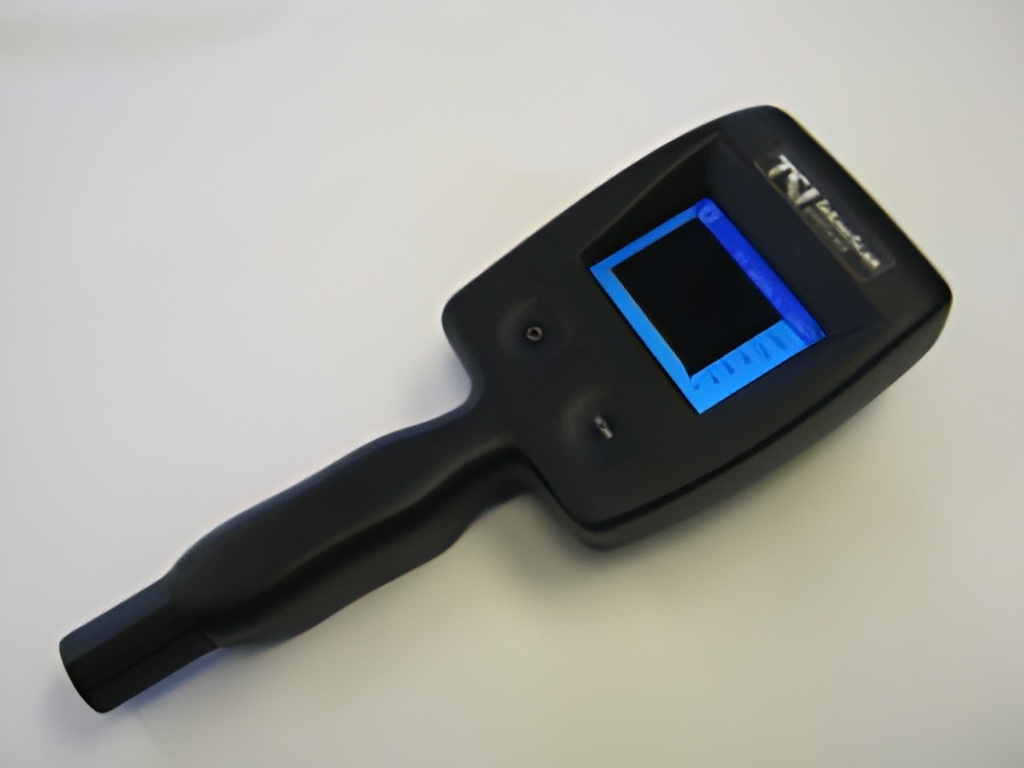

Radiation Detector
Detector
A novel Hand held radiation detector was developed to measure radiation levels on
collected air sample from inside marine containers. High volume sampling of the
container air is carried out and concentration of the vapor and particulates on a
nanocarbon coated sample card allows enrichment of the sample for subsequent
analysis in the explosive/narcotic detection system TSI-3000.
Prior to the analysis radiation levels from contaminated dust, debris or other
collected microscopic particles is measured in all designated units with default
reading in mR/hour.

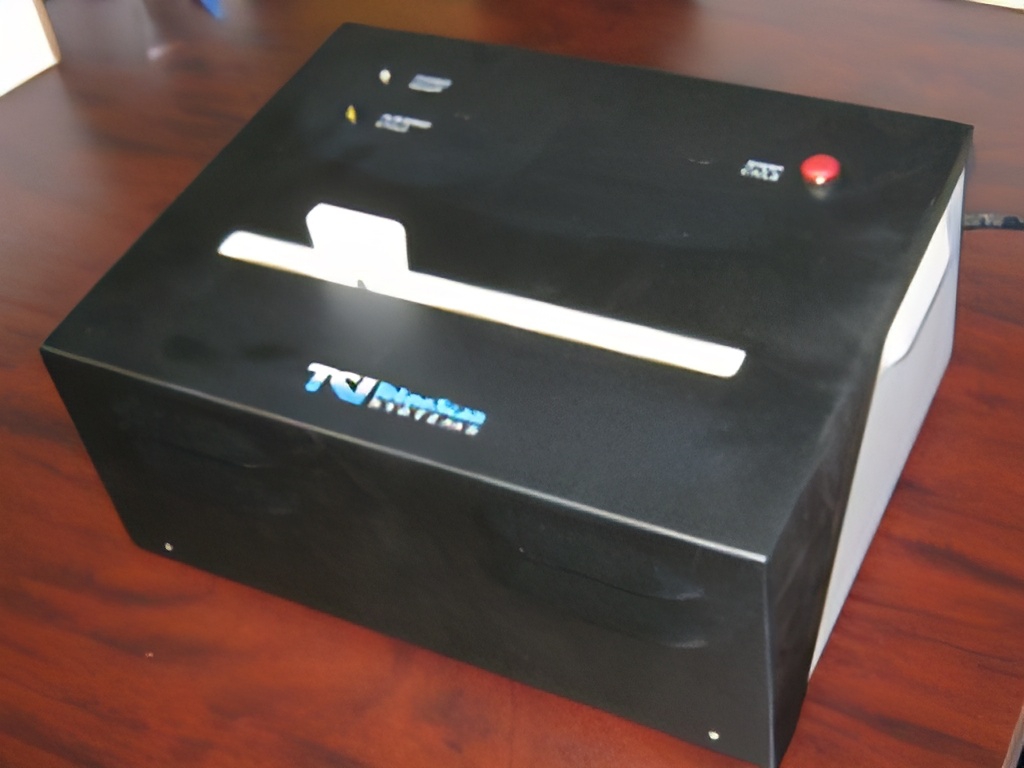

Sample Card Cleaner
Cleaner
The Aspiration Card Cleaner is designed to clean up to 5 Aspiration Cards
simultaneously. The cleaning time is 5 minutes. The cards are heated to a high
temperature and air blown through the cards to remove any vapors and particles that
may be adhering to the cards after the sampling and analysis is done.
